Buying a slurry pump feels different from purchasing most other industrial equipment. With a conveyor belt or a tank, what you see is roughly what you get. But a slurry pump involves hidden complexities—wear rates, seal compatibility, critical speeds, and the unpredictable behavior of solids moving through narrow passages. CNSME has watched too many customers buy the wrong pump simply because they did not know which questions to ask. That is why they created this buying guide. It is not a sales pitch wrapped in technical jargon. It is an honest walk through the decisions that separate a pump that runs for years from one that becomes a costly headache. Whether you are replacing an old pump or equipping a new plant, understanding these fundamentals will save you time, money, and plenty of frustration.
Start with a Clear Picture of Your Slurry
Before looking at pump curves or material options, you need to understand what you are actually moving. CNSME recommends answering five basic questions about your slurry. What is the largest solid particle size? What is the average particle size? What shape are the particles—sharp and angular or round and smooth? What is the solids concentration by weight and by volume? And finally, is the slurry pump manufacturer ↗ chemically aggressive or neutral? These answers drive every subsequent decision. A pump handling fine, sharp sand needs different hydraulics than one moving soft, round coal particles. A slurry with ten percent solids behaves nothing like one with fifty percent solids. CNSME provides a simple data sheet that walks you through these questions. Taking thirty minutes to fill it out carefully will prevent months of regret after the pump is installed.
## Match Pump Type to Your Application Pattern
Not all slurry pumps are created equal, and CNSME manufactures several families for different duty cycles. Horizontal centrifugal pumps are the workhorses for continuous operation—think mill discharge, cyclone feed, and tailings transport. They handle high flow rates efficiently and allow easy access for maintenance. Vertical slurry pumps, often called sump pumps, are designed for pit applications where the suction level fluctuates. The motor stays above the liquid while the wet end sits submerged, eliminating priming concerns. Submersible slurry pumps operate completely underwater, ideal for dredging or dewatering excavations. CNSME helps buyers choose based on their installation space, required suction conditions, and whether the pump will run dry occasionally. A common mistake is using a horizontal pump in a dewatering pit where it cannot maintain prime, leading to repeated seal failures. Matching the type to the task eliminates these avoidable problems.
Size the Pump Correctly for Flow and Head
Sizing errors are the most expensive mistakes in slurry pumping. An oversized pump wastes electricity, accelerates wear due to excessive velocity, and may require throttling that damages the impeller. An undersized pump runs off the curve, cavitates, and fails to deliver the required flow. CNSME’s engineering team starts by asking for your desired flow rate in cubic meters per hour or gallons per minute, along with the total dynamic head your system requires. Head includes static lift, friction losses through pipes and fittings, and any pressure needed at the discharge point. They also need to know the pipe diameter and length, as well as the number of elbows, valves, and other fittings. With this information, they select a pump whose best efficiency point aligns with your operating point. A properly sized pump runs smoothly, consumes predicted power, and delivers predictable wear life. Never guess on sizing—measure or calculate instead.
Choose the Right Material for Wear Parts

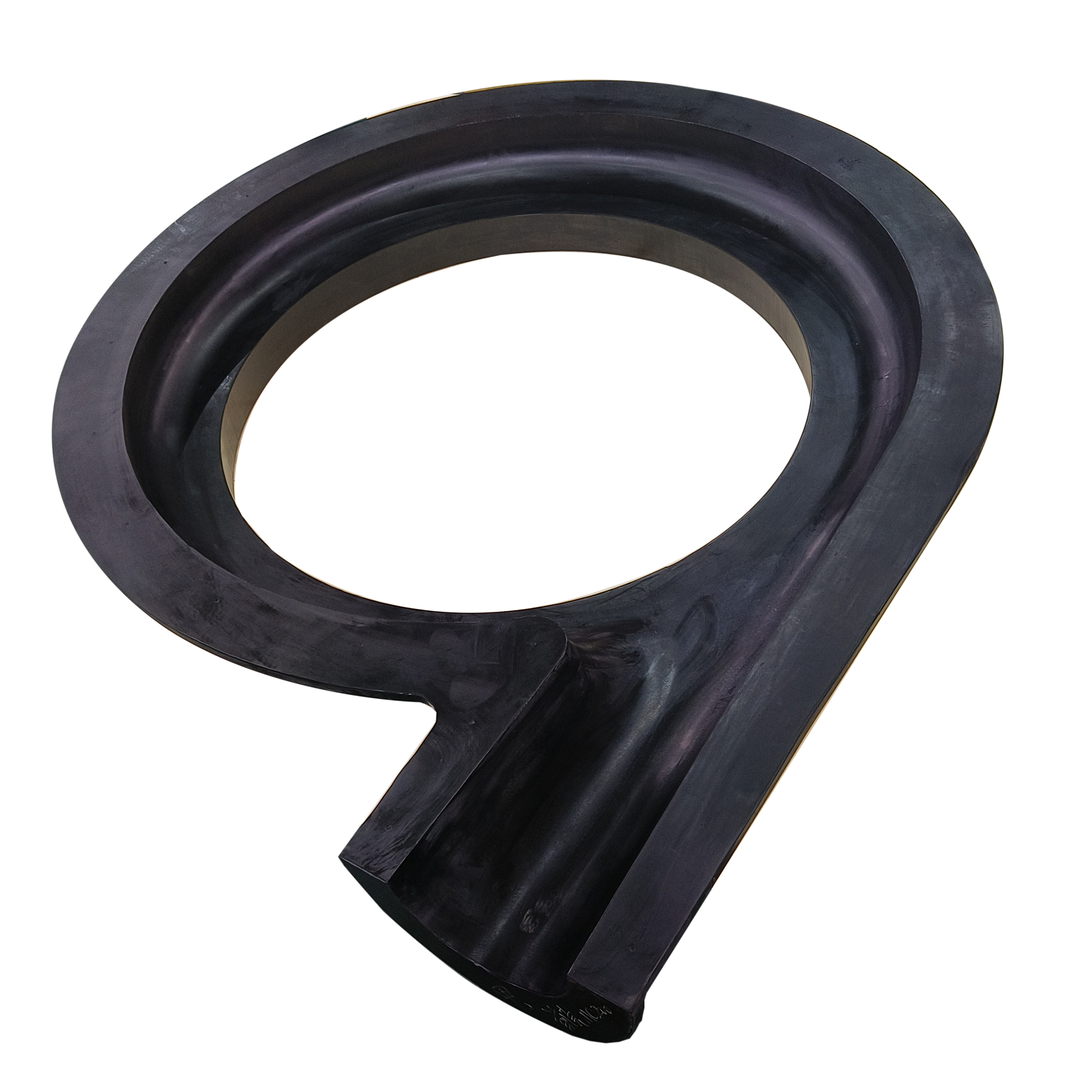

The material of your pump’s wet end determines how many tons of solids it can move before needing replacement. CNSME offers three main categories. High-chrome white iron is the default choice for highly abrasive slurries containing sharp, hard particles like silica, iron ore, or granite. It achieves hardness over 600 Brinell and resists gouging and erosion exceptionally well. Rubber lining is ideal for slurries with fine, non-sharp particles where impact is low but corrosion may be present. Rubber absorbs impact energy and provides excellent resistance to acidic or alkaline conditions. Stainless steel and duplex alloys are reserved for corrosive slurries where high-chrome would dissolve or where product contamination cannot be tolerated. CNSME maintains a material selection chart based on particle hardness, shape, size, and pH. If you remain uncertain, sending a slurry sample allows them to run laboratory wear tests and recommend confidently.
Select a Seal That Matches Your Operating Environment
Seal selection often confuses first-time buyers, but the principle is straightforward. You need to keep slurry out of the bearing housing and off the plant floor. Gland packing is the simplest and most field-serviceable option. It uses braided fibers compressed around the shaft, with a small amount of leakage providing lubrication and cooling. Gland packing works well when a little leakage is acceptable and when clean water is available for flushing. Expeller seals use a rotating vaned device that flings solids away from the shaft, creating a dry running condition with no rubbing contact. They are excellent for dirty slurries but require sufficient suction pressure to function. Mechanical seals provide a perfect seal with no visible leakage, ideal for toxic or valuable slurries or where environmental rules forbid drips. They are more expensive and require clean flush water or a pressurized barrier fluid. CNSME walks customers through these trade-offs honestly, never recommending a mechanical seal when gland packing would work fine.
## Plan for Maintenance Before You Install
The smartest buying decision you can make is planning for maintenance on the day you order the pump. CNSME encourages buyers to order a basic spare parts kit with every new pump. The kit typically includes one spare impeller, one spare liner, a set of gaskets and O-rings, and a shaft sleeve. Having these parts on hand before the pump arrives means your first wear replacement happens in hours instead of days. CNSME also recommends keeping a maintenance log from day one, recording hours run, discharge pressure, and power consumption. Changes in these readings often predict wear long before performance drops noticeably. Finally, train at least two people on your crew to perform wet end replacements. Cross-training ensures that a single vacation or sick day does not leave your plant unable to fix a worn pump. Maintenance planning costs nothing but returns dividends every time a repair goes smoothly.
Watch for These Red Flags When Comparing Suppliers
As you evaluate different slurry pump manufacturers, CNSME suggests watching for several warning signs. A supplier who refuses to ask about your slurry composition probably does not understand wear mechanisms. A quote that arrives without a dimensional drawing suggests the supplier has not verified fit with your existing piping. Vague lead times like “four to six weeks” often stretch into months when the supplier actually sources components from multiple subcontractors. And any hesitation to provide a detailed parts list with pricing indicates that consumable costs may surprise you later. CNSME provides all of this information upfront because they believe informed buyers become loyal customers. When you see a supplier checking these boxes—asking detailed questions, providing drawings, committing to firm lead times, and sharing parts pricing—you have found a partner, not just a vendor. That distinction makes all the difference when your pump is finally installed and running.
